Oval Raceface Cinch Narrow Wide Chainring - Direct Mount - 3mm Offset

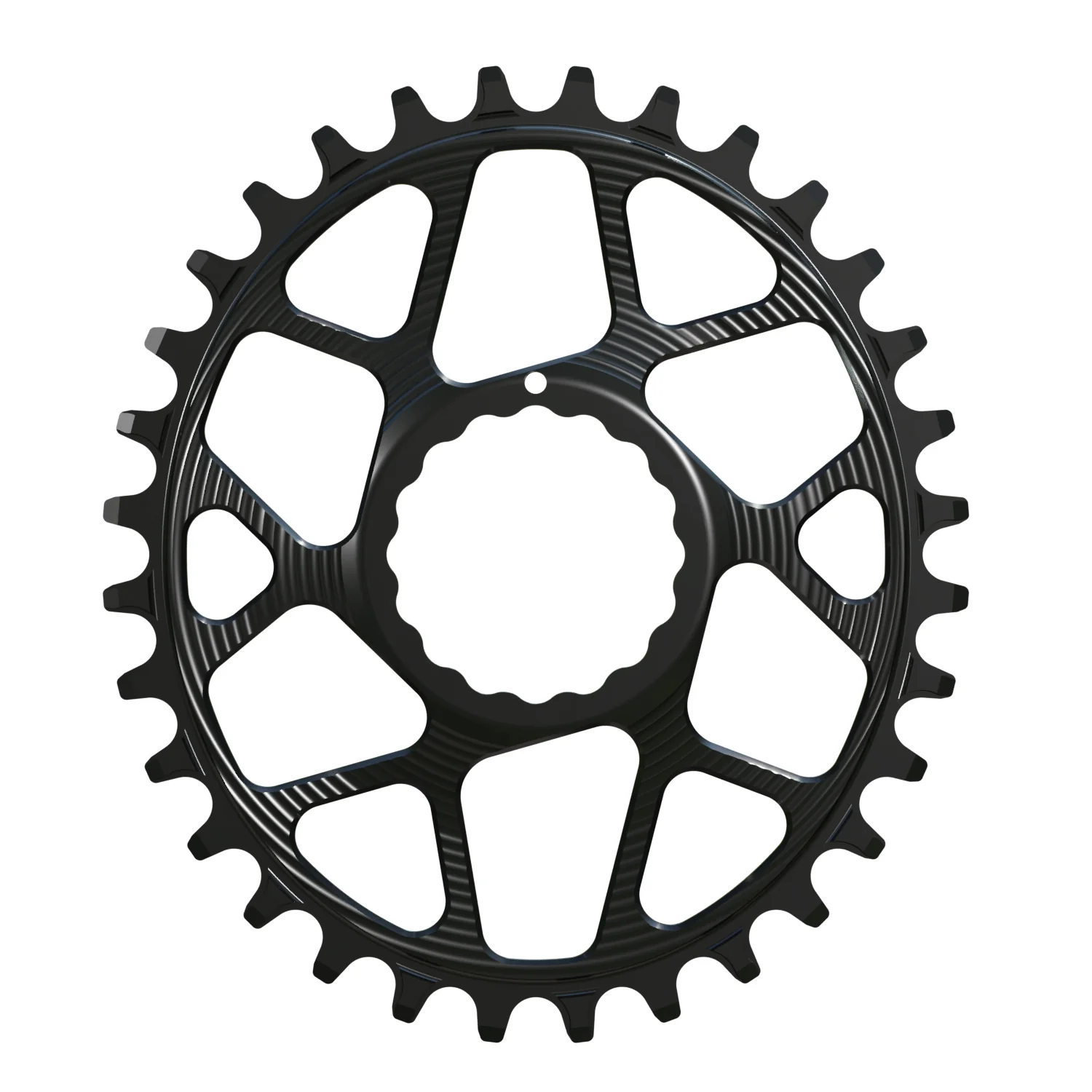

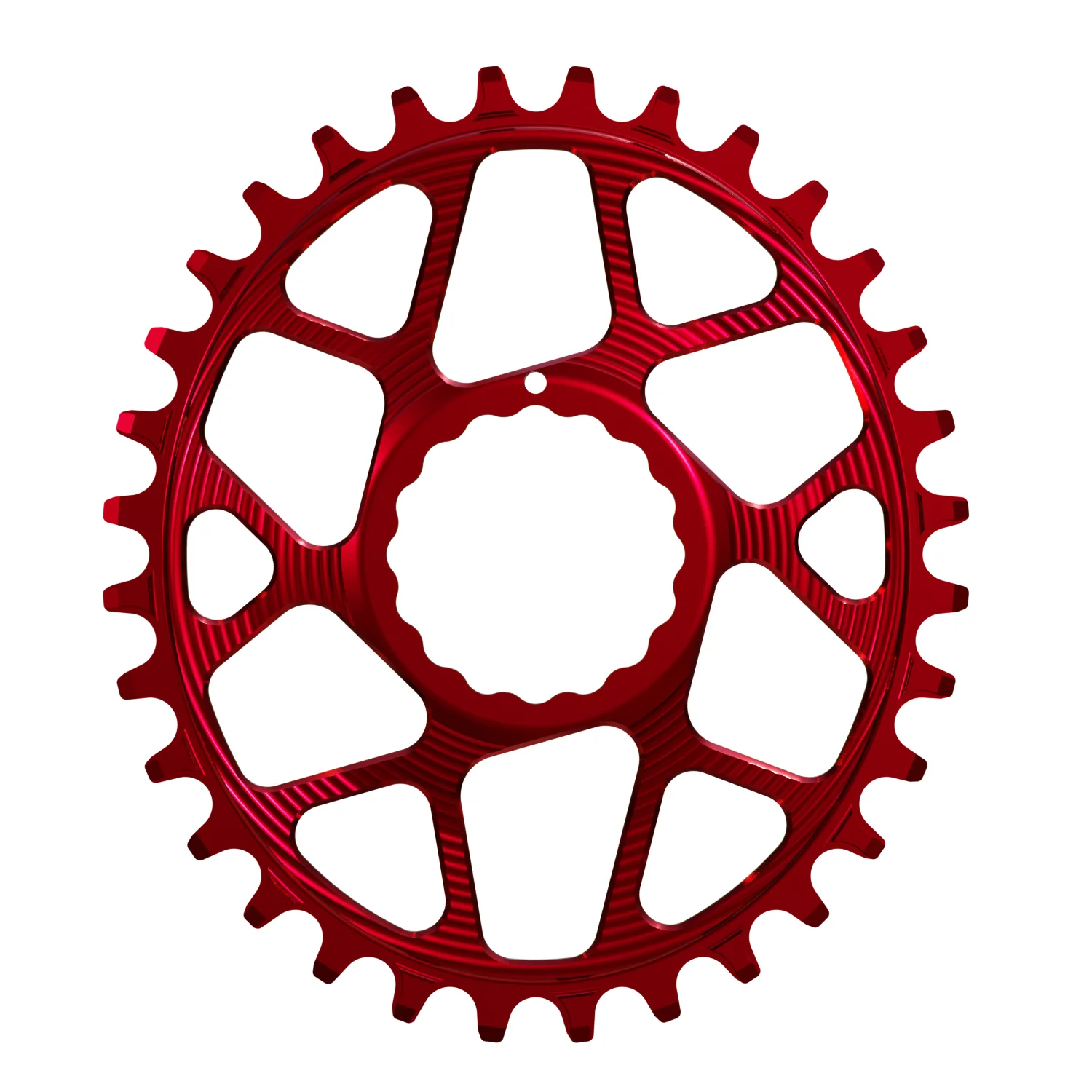

Works Components RaceFace Cinch direct mount oval chainring - engineered to work with T-Type and Non T-Type 10-12spd chains. Precision CNC-machined in the UK from aerospace 7075-T6 aluminium. Its narrow-wide tooth profile ensures excellent chain retention and the oval profile maximises the effective power stroke and helps reduce dead spots.

Specifications:

  • Offset: RaceFace Cinch 3mm Boost
  • Shape: Oval
  • Compatible Chains: T-Type and Non T-Type 10-12SPD Chains including Eagle 12SPD and Shimano HG+
  • Compatible Cranks: RaceFace Cinch, Next SL, SIXC. Aeffect (removable spider) - Atlas, Turbine, Cinch RaceFace Cranksets.
  • Ovality: 12%
  • Clocking: Crank arm positions major diameter in the optimum position of your power stroke (116 degrees)
  • Tooth Count: 30T, 32T, 34T
  • Weights: 30T:49g 32T:58g 34T:62g
  • Material: 7075-T6 Aluminium
  • Surface Coating: Anodised

Works Components RaceFace Cinch direct mount oval chainring - engineered to work with T-Type and Non T-Type 10-12spd chains. Precision CNC-machined in the UK from aerospace 7075-T6 aluminium. Its narrow-wide tooth profile ensures excellent chain retention and the oval profile maximises the effective power stroke and helps reduce dead spots.

Specifications:

  • Offset: RaceFace Cinch 3mm Boost
  • Shape: Oval
  • Compatible Chains: T-Type and Non T-Type 10-12SPD Chains including Eagle 12SPD and Shimano HG+
  • Compatible Cranks: RaceFace Cinch, Next SL, SIXC. Aeffect (removable spider) - Atlas, Turbine, Cinch RaceFace Cranksets.
  • Ovality: 12%
  • Clocking: Crank arm positions major diameter in the optimum position of your power stroke (116 degrees)
  • Tooth Count: 30T, 32T, 34T
  • Weights: 30T:49g 32T:58g 34T:62g
  • Material: 7075-T6 Aluminium
  • Surface Coating: Anodised
